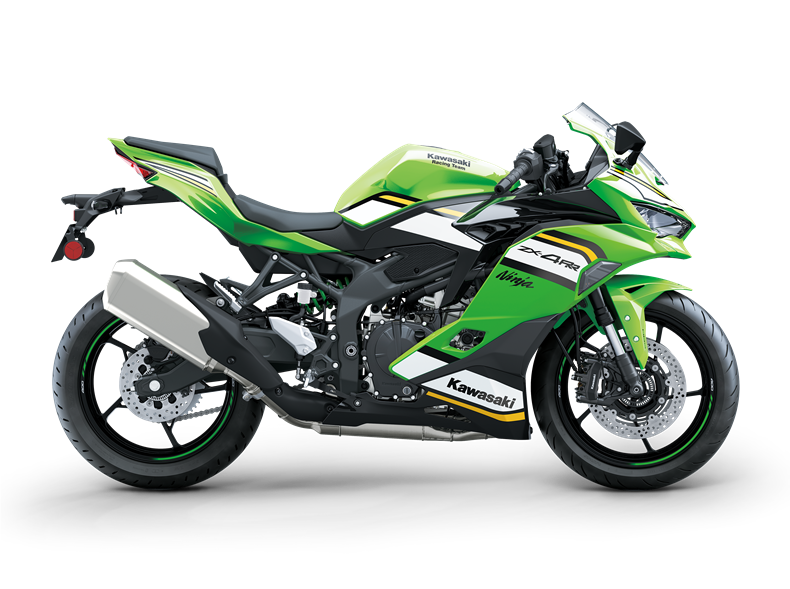

Into a category filled with 400cc sport models, Kawasaki introduces a revolutionary Supersport model. The Ninja ZX-4RR mounts a 400cc In-Line Four engine with class-leading performance in a compact chassis. On the track or on the street, experiencing the exhilaration of the Ninja ZX-4RR’s unprecedented power, thrilling high-rpm wail, and its sharp, nimble handing will surely awaken the dormant Supersport within you.
The 4.3” all-digital TFT colour instrumentation with selectable display modes (Normal, Circuit) clearly displays the most pertinent information, whether on the street or on the track. Circuit Mode shows the gear position, lap times, and rpm above 10,000 more prominently.
Complementing the centrally positioned Ram Air intake, the side Ram Air duct, designed with feedback from the Ninja H2, routes air to the air cleaner box and contributes to stellar performance. Its aggressive look and intake sound add to the screaming In-Line Four experience, and visually identify the bike as one of Kawasaki’s Ninja ZX models.
Naturally aggressive riding position (more forwardleaning than the Ninja 400’s, but still slightly relaxed) lets riders take advantage of the Ninja ZX-4R’s nimble handling. The fuel tank feels slim, promoting good contact with the bike, while the shape of the firm seat cushion facilitates rider weight shift during sport riding, and is comfortable for longer rides.
Bluetooth technology built into the instrument panel allows connection to smartphones via the “RIDEOLOGY THE APP” smartphone application, enabling riders to access instrument functions for an enhanced motorcycling experience.
The ZX-4R’s two ø290 mm front brake discs and radialmount monobloc calipers provide sure stopping power, while also offering excellent braking feel to inspire confidence both on the track and on the street.
Four integrated riding modes (Sport, Road, Rain or Rider (manual)) make it simple to select a level of traction control and power mode to suit the current riding conditions.
Allowing riders to take even greater advantage of the Ninja ZX-4R’s exhilarating engine character, the quick shifter enables clutchless upshifts and downshifts for seamless acceleration and easy deceleration.
Designed using Kawasaki’s advanced dynamic rigidity analysis, this trellis frame made from high-tensile steel delivers the required balance of strength and chassis flex to achieve the Ninja ZX-4R’s nimble supersport-style handling
With a redline beyond 15,000 rpm indicating its screaming potential, this engine features racing-inspired technology also found on the Ninja ZX-10R. The high revs deliver a distinctive, exhilarating engine sound characteristic of a high-performance Kawasaki In-Line Four.
The new 399 cm3 liquid-cooled DOHC In-Line Four engine pushes technological boundaries to comfortably top the 400cc class*. Developed with know-how gained from other Ninja ZX models, the high-performance engine offers class-leading power and a revrange that extends beyond 15,000 min-1.
Style meets substance with the Ninja ZX-4R’s high-class styling and high-grade package. Aggressive looks are complemented by premium features like TFT colour instrumentation providing clear information, integrated Riding Modes that link traction control and power modes for easy machine setup, and on the ZX-4RR a quick shifter for fast, simple gear changes.
From its twin headlights to its Ninja ZX-10R-inspired taillight, all lighting on the Ninja ZX-4R is LED.
Befitting the most powerful machine in the 400cc class, the Ninja ZX-4R’s aggressive Ninja styling exudes a fierce aura of restrained power and explosive action.
Key chassis dimensions (centre of gravity position, swingarm pivot position, engine axis positions, caster
angle, etc) were inspired by Kawasaki’s World Superbike Ninja ZX-10RR racer, bringing WorldSBK chassis design thinking to the 400cc class.
The Ninja ZX-4R’s ø37 mm inverted fork uses SFFBP internals to offer both racetrack performance and everyday usability while the Horizontal Back-link rear suspension offers a progressive character. Offering increased adjustability, the Ninja ZX-4RR front fork includes an adjustable spring preload.
Kawasaki takes 400cc engine performance to a new level, achieving an unprecedented 57 kW (77 PS) of power. The howl of the engine as it revs beyond 15,000 min-1 adds to rider exhilaration. A quick-revving nature and direct throttle response are complemented by a flexible character that offers strong low to mid-range torque for city riding, as well as screaming high-rpm power ideal for sport or track riding.
Engine| Engine Type | Liquid-cooled, 4-stroke In-Line Four |
|---|---|
| Displacement | 399 cm³ |
| Bore x stroke | 57 x 39.1 mm |
| Compression ratio | 12.3:1 |
| Valve system | DOHC, 16 valves |
| Fuel system | Fuel Injection: Ø 34 mm x 4 |
| Starting System | Electric |
| Lubrication | Forced lubrication, wet sump |
Brakes & Suspension| Brakes, front | Dual semi-floating ø290 mm discs. Caliper: Dual radial-mount, monobloc, opposed 4-piston |
|---|---|
| Brakes, rear | Single 220 mm disc. Caliper: Single-piston |
| Suspension, front | ø37 mm inverted fork (SFF-BP) with spring preload adjustability, and topout springs |
| Suspension, rear | Horizontal Back-link, BFRC lite gas-charged shock with piggyback reservoir, compression and rebound damping and spring preload adjustability, and top-out spring |
Performance & Transmission| Maximum power | 57 kW {77 PS} / 14,500 rpm |
|---|---|
| Maximum power with RAM air | 58.7 kW {80 PS} / 14,500 rpm |
| CO2 Emission | 120 g/km |
| Maximum torque | 39 N•m {4 kgf•m} / 13,000 rpm |
| Transmission | 6-speed, return |
| Final drive | Sealed chain |
| Primary Reduction Ratio | 2.029 (69/34) |
| Gear Ratios 1st | 2.929 (41/14) |
| Gear Ratios 2nd | 2.056 (37/18) |
| Gear Ratios 3rd | 1.619 (34/21) |
| Gear Ratios 4th | 1.333 (32/24) |
| Gear Ratios 5th | 1.154 (30/26) |
| Gear Ratios 6th | 1.037 (28/27) |
| Final reduction ratio | 3.429 (48/14) |
| Clutch | Wet multi-disc |
Frame & Dimensions| Frame type | Trellis, high-tensile steel |
|---|---|
| Trail | 97 mm |
| Wheel travel front | 120 mm |
| Wheel travel rear | 124 mm |
| Tyre, front | 120/70ZR17M/C (58W) |
| Tyre, rear | 160/60ZR17M/C (69W) |
| L x W x H | 1,990 x 765 x 1,110 mm |
| Wheelbase | 1,380 mm |
| Ground clearance | 135 mm |
| Fuel capacity | 15 litres |
| Seat height | 800 mm |
| Curb mass | 189 kg |
